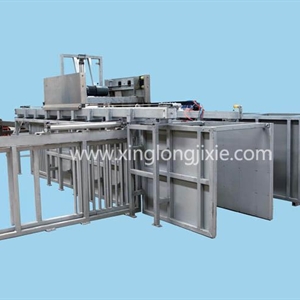

Automatic driving pig device
Model：TZ-JGZD-2760
Function: Automatic mechanical driven pig device. We use it to drive the washing pig into the pig channel entrance,which could guarantee animal welfare and reduce stress reaction, improve meat quality .By this way, we also can improve the working environment of workers, improve worker’s driving efficiency,decrease labor intensity. In addition, this  device also has the characteristics of stable operation, simple operation, easy maintenance, etc

Equipment main materials
         1.The main frame made of high quality hot zinc steel square.
         2.Track with gear rack meshed with the roller track combination, to ensure smooth operation.
         3.The shield and the cable rack is made of stainless steel plate
         4.lifting pneumatic components using "FESTO" products
         5.With moving balance door
Main technical parameters:
         1.Production capacity: 300 L / h
         2.Channel width: 2760mm
         3.Motor power: 1.1 kW
         4.Pushing -pig speed: 1.2-11.3m/min
         5.Pneumatic working pressure: 0.6Mpa
         6.lifting gate stroke: 800mm
         7.Sliding stroke: 1200mm
